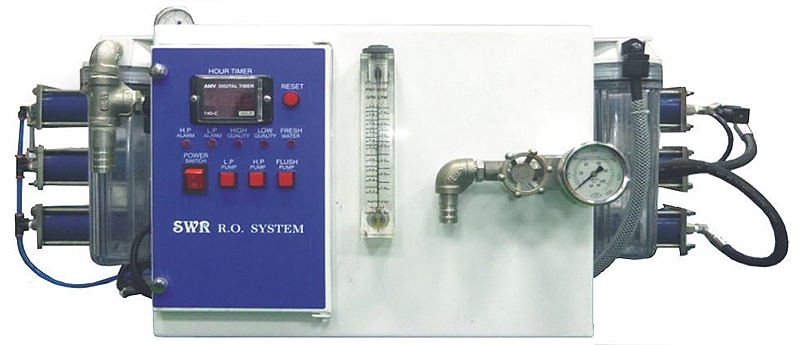

SWR series (reverse osmosis type) Fresh Water Generator

Content

● Microprocessor Controller	● Sea Water High Pressure Pump
● Auto Flush System	● Robust Membrane Housing
● Sea Water Booster Pump, 316SS	● High Efficiency RO Membranes
● Fresh Water/Brine Flowmeters	● Pressure Gauge, 316SS
● High Pressure Regulator, 316SS	● Flanges and Fittings, 316SS
● 5&20 Micron Pre-filters	● Stainless Steel Frame

Type	Fresh Water Capacity (tons/24 hours)	Dimension (L x Wx H) mm	Power
SWR400	1.5	800 x 600 x 500	Vac 220/380/440 50/60Hz 3ph
SWR600	2.2	800 x 600 x 500
SWR800	3.0	1250 x 600 x 500
SWR1300	5.0	1250 x 600 x 500
SWR1600	6.0	1250 x 810 x 800
SWR2100	8.0	1250 x 930 x 800
SWR2600	10.0	1250 x 930 x 800
Models of higher water output are also available.

● Material Code : S=316SS; N=Aluminum Bronze

● Data shown in the above table is only for reference, which are tested on 220V,
60Hz, 3ph.

● The Production water output and salt removal rate are tested on sea water salinity
35000ppm, temperature 25℃, and work pressure 56bar(800psi).

● SWR series are available to highest sea water salinity 60000ppm, highest
temperature 50℃, lowest temperature9℃, and the average salt removal rate can
reach 99%.
