TCS series (vapour type ) Fresh Water Generator /Water Maker

Content

TCS series generators are designed to produce fresh water containing less than 5ppm of TDS, from sea water using waste heat from the main engine or auxiliary engine jacket cooling water.

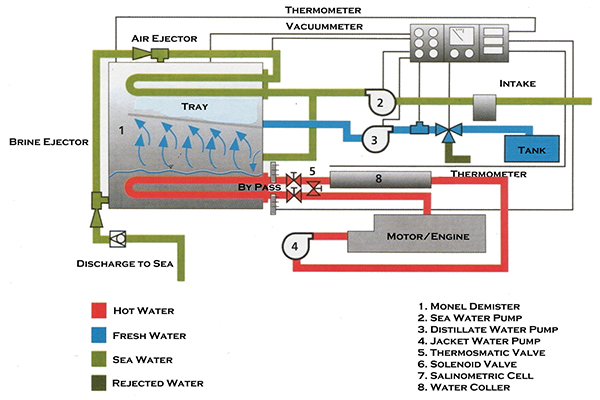

Operation is based on a simple distillation principle Sea water is boiled at low temperature under vacuum to create vapour. This vapour passes through a monel demister, where any droplets of water containing solids are removed, thus only pure vapour will enter into the condenser sea cooled section.

The use of non-ferrous materials, ensures long life and high water quality.

Type	Fresh Water Capacity (liter/24 hours)	L (mm)	W (mm)	H (mm)	Weight (kgs)
TCS1	2000	815	345	1240	170
TCS1.5	3000	830	380	1345	223
TCS2	4000	1170	490	1320	260
TCS2.5	5000	1370	490	1320	338
TCS3	6000	1230	660	1410	390
TCS4	8000	1320	775	1610	560
TCS5	10000	1515	810	1580	750
TCS6	12000	1680	800	1605	860
TCS8	16000	1670	910	1930	1110
TCS10	20000	1565	910	2060	1375
TCS12	24000	1790	910	1800	1685
TCS15	30000	2070	910	1800	1800
